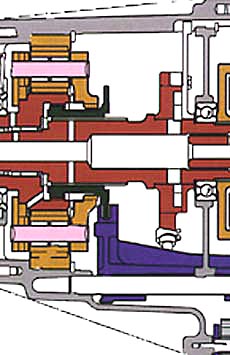

Transfer case in high range

The blue lever at the bottom of the images holds the reduction hub in high range position.

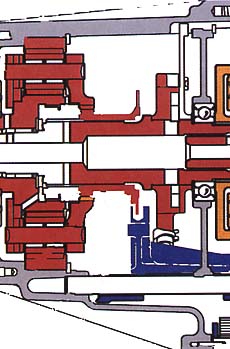

Transfer case in low range

In this image the blue lever has pulled the reduction hub back to engage the low range portion of the planetary gears
